High-quality PCB foil optimized for general Multilayer Rigid PCBs
Classification | ICS | ||
---|---|---|---|
Room temperature | Tensile strength | kgf/㎟ | ≥ 35 |
Elongation | % | > 3 | |
Adhesive strength | @FR-4 | kgf/㎝ | ≥ 0.8 |
Corresponding surface roughness | ㎛ | ≤ 4.0 | |
Corresponding thickness | ㎛ | 8, 9, 12, 18, 35 |
Copper foil designed for superior adhesion to PI, offering excellent bending resistance without compromising on low surface roughness for flexible PCB applications
Classification | IHT | ICR | IRT | ||
---|---|---|---|---|---|
Room temperature | Tensile strength | kgf/㎟ | ≥ 25 | ≥ 35 | ≥ 40 |
Elongation | % | > 6 | > 3 | > 3 | |
Corresponding surface roughness | ㎛ | ≤ 2.0 | ≤ 2.5 | ≤ 2.0 | |
Corresponding thickness | ㎛ | 7~12 | 7~70 | 7~70 |
RTF(Reverse Treated Foil) product with excellent high-frequency properties up to ~10Ghz, featuring high adhesive strength with low-dielectric materials
Classification | HRT | MRT | SRT | ||
---|---|---|---|---|---|
Grade | RTF 1 | RTF 2 | RTF 3 | ||
Room temperature | Tensile strength | kgf/㎟ | ≥ 35 | ≥ 35 | ≥ 35 |
Elongation | % | > 3 | > 3 | > 3 | |
Corresponding surface roughness | ㎛ | ≤ 1.8 | ≤ 1.5 | ≤ 1.5 | |
Corresponding thickness | ㎛ | 7~70 |

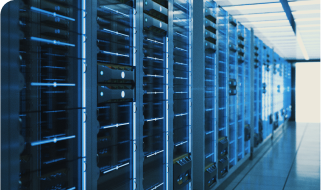

This product is designed for high-speed signal transmission in ultra-low light conditions, exhibiting low transmission loss in high-frequency environments. It is suitable for use as an inner layer in high-performance products such as servers, routers, and switches. It features stable adhesion characteristics with low Dk, Df resins and has low loss properties. The ultra-low roughness surface treatment with Rz 0.5 or less ensures excellent performance even in frequency bands up to 50GHz. HVLP provides stable adhesion between the resin and Elecfoil, and the ultra-fine nodule treatment maximizes ultra-high-speed signal transmission characteristics. Thanks to these features, HVLP copper foil has established itself as an essential material for high-speed signal transmission in applications such as 6G and AI.
Classification | IVP | ISP | LHZ | LSZ |
New Product |
||
---|---|---|---|---|---|---|---|
Grade | HVLP 1 | HVLP 2 | HVLP 3 | HVLP 4 | HVLP 5 | ||
Room temperature | Tensile strength | kgf/㎟ | ≥ 45 | ≥ 45 | ≥ 35 | ≥ 35 | Under development |
Elongation | % | > 3 | > 3 | > 3 | > 3 | ||
Corresponding surface roughness | ㎛ | ≤ 1.5 | ≤ 1.2 | ≤ 1.0 | ≤ 0.8 | ≤ 0.5 | |
Corresponding thickness | ㎛ | 12~35 |

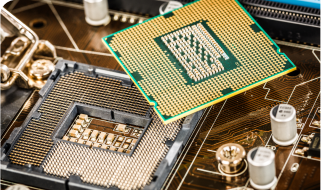

High-performance copper foil with exceptional mechanical strength, facilitating the creation of Fine Pattern during circuit etching, making it an ideal material for Package Substrates. Maintains high adhesive strength despite low surface roughness, suitable for use in HDI(High Density Interconnection) applications.
The product is differentiated by high-temperature elongation rate.
Classification | LPF | LPS | ||
---|---|---|---|---|
Room temperature | Tensile strength | kgf/㎟ | ≥ 30 | ≥ 40 |
Elongation | % | > 6 | > 8 | |
High temperature | Tensile strength | kgf/㎟ | ≥ 25 | ≥ 35 |
Elongation | % | > 10 | > 8 | |
Adhesive strength | ㎛ | ≥ 0.7 | ≥ 0.7 | |
Corresponding surface roughness | ㎛ | ≤ 2.5 | ≤ 2.0 | |
Corresponding thickness | ㎛ | 12, 18 | 7, 8, 9, 12 |
Material suitable for PKG Substrate applications in Memory, RF, and mobile DEP, characterized by low surface roughness and stable peel strength even at high temperatures. Ultra-thin copper foil with a thickness of less than 5 micrometers, ideal for creating fine patterns, comes with an attached carrier. The product is graded based on surface roughness.
Classification | IUT | UTL | UTS | UTZ | UTFS | ||
---|---|---|---|---|---|---|---|
Corresponding surface roughness | kgf/㎟ | ≤ 1.50 | ≤ 1.30 | ≤ 1.00 | ≤ 0.70 | ≤ 1.00 | |
Peeling strength | gf/㎝ | 3~30 | 3~30 | 3~30 | 3~30 | 3~30 | |
Adhesive strength | @BT | kgf/㎝ | ≥ 0.5 | ≥ 0.5 | ≥ 0.5 | ≥ 0.5 | ≥ 0.5 |
Corresponding thickness | ㎛ | 1, 1.5, 2, 3, 5 | 1, 1.5, 2, 3, 5 | 1, 1.5, 2, 3 | 1, 1.5, 2, 3 | 3, 5 |
High-quality PCB foil optimized for general Multilayer Rigid PCBs
Classification | ICS | ||
---|---|---|---|
Room temperature | Tensile strength | kgf/㎟ | ≥ 35 |
Elongation | % | > 3 | |
Adhesive strength | @FR-4 | kgf/㎝ | ≥ 0.8 |
Corresponding surface roughness | ㎛ | ≤ 4.0 | |
Corresponding thickness | ㎛ | 8, 9, 12, 18, 35 |
Copper foil designed for superior adhesion to PI, offering excellent bending resistance without compromising on low surface roughness for flexible PCB applications
Please swipe the screen left or right to check.
Classification | IHT | ICR | IRT | ||
---|---|---|---|---|---|
Room temperature | Tensile strength | kgf/㎟ | ≥ 25 | ≥ 35 | ≥ 40 |
Elongation | % | > 6 | > 3 | > 3 | |
Corresponding surface roughness | ㎛ | ≤ 2.0 | ≤ 2.5 | ≤ 2.0 | |
Corresponding thickness | ㎛ | 7~12 | 7~70 | 7~70 |
RTF(Reverse Treated Foil) product with excellent high-frequency properties up to ~10Ghz, featuring high adhesive strength with low-dielectric materials
Please swipe the screen left or right to check.
Classification | HRT | MRT | SRT | ||
---|---|---|---|---|---|
Grade | RTF 1 | RTF 2 | RTF 3 | ||
Room temperature | Tensile strength | kgf/㎟ | ≥ 35 | ≥ 35 | ≥ 35 |
Elongation | % | > 3 | > 3 | > 3 | |
Corresponding surface roughness | ㎛ | ≤ 1.8 | ≤ 1.5 | ≤ 1.5 | |
Corresponding thickness | ㎛ | 7~70 |

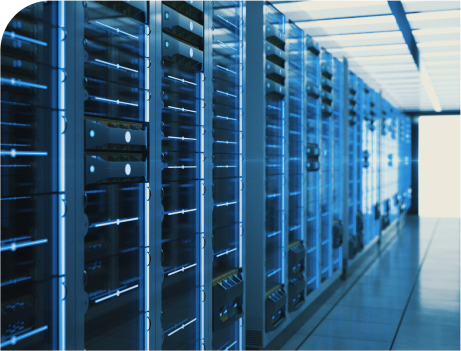

This product is designed for high-speed signal transmission in ultra-low light conditions, exhibiting low transmission loss in high-frequency environments. It is suitable for use as an inner layer in high-performance products such as servers, routers, and switches. It features stable adhesion characteristics with low Dk, Df resins and has low loss properties. The ultra-low roughness surface treatment with Rz 0.5 or less ensures excellent performance even in frequency bands up to 50GHz. HVLP provides stable adhesion between the resin and Elecfoil, and the ultra-fine nodule treatment maximizes ultra-high-speed signal transmission characteristics. Thanks to these features, HVLP copper foil has established itself as an essential material for high-speed signal transmission in applications such as 6G and AI.
Please swipe the screen left or right to check.
Classification | IVP | ISP | LHZ | LSZ |
New Product |
||
---|---|---|---|---|---|---|---|
Grade | HVLP 1 | HVLP 2 | HVLP 3 | HVLP 4 | HVLP 5 | ||
Room temperature | Tensile strength | kgf/㎟ | ≥ 45 | ≥ 45 | ≥ 35 | ≥ 35 | Under development |
Elongation | % | > 3 | > 3 | > 3 | > 3 | ||
Corresponding surface roughness | ㎛ | ≤ 1.5 | ≤ 1.2 | ≤ 1.0 | ≤ 0.8 | ≤ 0.5 | |
Corresponding thickness | ㎛ | 12~35 |

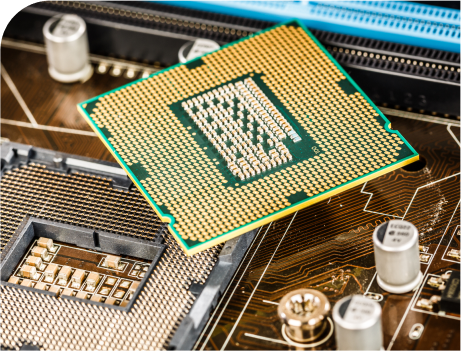

High-performance copper foil with exceptional mechanical strength, facilitating the creation of Fine Pattern during circuit etching, making it an ideal material for Package Substrates. Maintains high adhesive strength despite low surface roughness, suitable for use in HDI(High Density Interconnection) applications.
